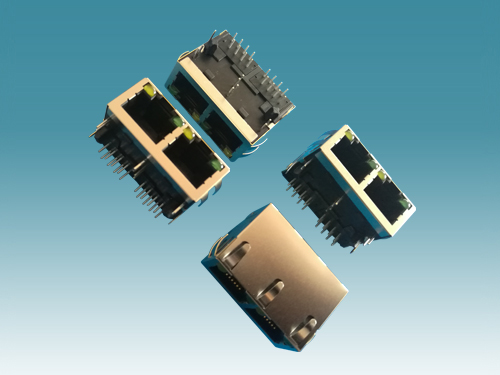

Description: RJ45 Side Entry Transformer LED Jack,Tab UP
Series No: SJT
No. of Positions:8
No. of Contacts:8
No. of Ports:1x1,1x2,1x4
Gold Plating:Gold Flash,3u",6u",15u",30u",50u"
Turn Ratio:1:1,1:2,1:1.414,1:1.25,2:1,1.414:1,1.25:1
Shield Style: With Top & Side Tabs, Without Tab,Unshield
Option: With/Without LED, LED Color Optional
PCB Mount Style: DIP
Solder Pin Style: Stamped Pin
Depth:21.5mm
|
